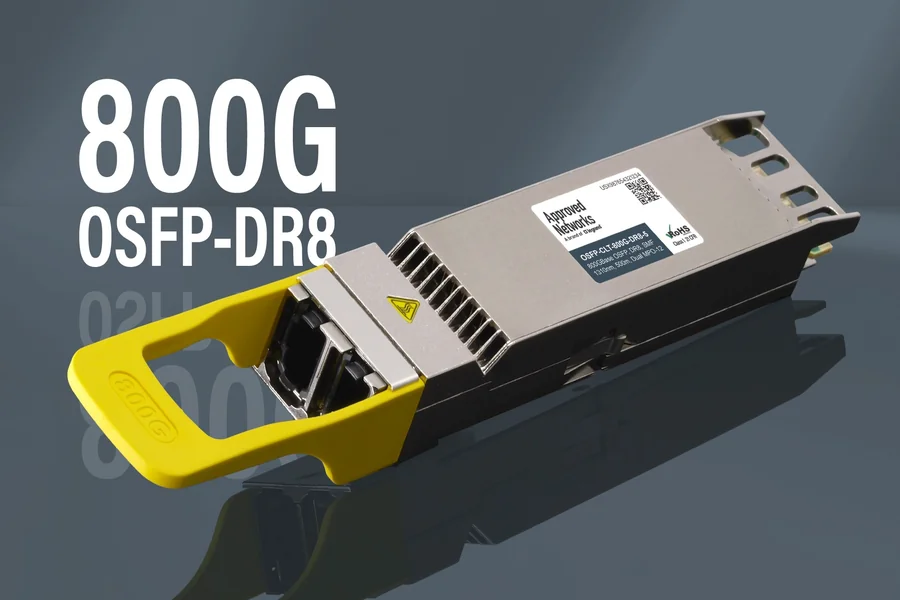

An 800G OSFP optical transceiver is a next-generation high-speed pluggable module designed to support 800-gigabit Ethernet transmission in hyperscale data centers, AI clusters, and advanced telecom networks. OSFP, which stands for Octal Small Form Factor Pluggable, was originally developed to address the thermal and electrical limitations of earlier form factors and has now become one of the primary platforms for 800G networking.
The 800G OSFP module typically supports eight electrical lanes operating at 100 Gbps per lane using PAM4 modulation, resulting in a total throughput of 800 Gbps. On the optical side, the module can be implemented in multiple architectures such as DR8, 2×FR4, or 2×LR4, depending on the required transmission distance and network topology. With its larger physical size and improved heat dissipation, OSFP enables stable operation at higher power levels, which is critical for advanced DSPs and high-performance optical engines.
As network traffic continues to grow due to AI workloads, cloud services, and data-intensive applications, 800G OSFP transceivers provide the bandwidth density and scalability needed to support future-proof network designs.
Core Features and Technical Advantages of 800G OSFP Modules
One of the defining strengths of the 800G OSFP form factor is its superior thermal performance. Compared with QSFP-DD, OSFP modules support higher power budgets, often exceeding 18 W, allowing vendors to integrate more complex digital signal processors and higher-speed optical components. This thermal headroom is essential for maintaining signal integrity at 100 Gbps per lane.
From a signal processing perspective, 800G OSFP optical transceivers rely on advanced PAM4 modulation combined with powerful DSP algorithms to mitigate dispersion, noise, and nonlinear effects. These technologies enable reliable transmission over single-mode fiber even at extremely high data rates. Depending on the module type, reach options typically include 500 meters to 2 km for DR8, 2 km for FR4, and up to 10 km or more for LR4 variants.
In addition, 800G OSFP modules support comprehensive digital diagnostics and management functions. Real-time monitoring of temperature, supply voltage, laser bias current, and optical output power allows network operators to optimize performance and improve operational reliability. Hot-pluggable capability further simplifies deployment and replacement, reducing downtime and maintenance complexity in large-scale network environments.
Another important advantage is mechanical robustness. The OSFP connector and cage design provide improved EMI performance and mechanical stability, which becomes increasingly important as port density and signal speeds continue to rise.
Typical Use Cases and Deployment Scenarios
800G OSFP optical transceivers are primarily deployed in hyperscale data centers to support next-generation leaf-spine and super-spine architectures. In these environments, they are commonly used for switch-to-switch interconnects, enabling massive increases in total switching capacity while reducing the number of required ports. This helps data center operators improve space efficiency and lower overall system cost.
Artificial intelligence and high-performance computing clusters represent another major application area. Large AI training models generate enormous east-west traffic between GPUs, accelerators, and storage systems. 800G OSFP modules provide the ultra-high bandwidth and low latency needed to keep compute resources fully utilized, especially in tightly coupled GPU fabrics and scale-out architectures.
Service providers and telecom operators are also beginning to adopt 800G OSFP technology for data center interconnect and metro aggregation scenarios. As backbone traffic continues to grow and network architectures evolve toward higher capacity wavelengths, 800G optical modules offer a scalable path that balances performance, power efficiency, and long-term investment protection.
Overall, the 800G OSFP optical transceiver plays a critical role in enabling the next wave of high-speed networking. Its combination of bandwidth density, thermal capability, and flexible reach options makes it a key enabler for future cloud, AI, and carrier-grade network infrastructure.
